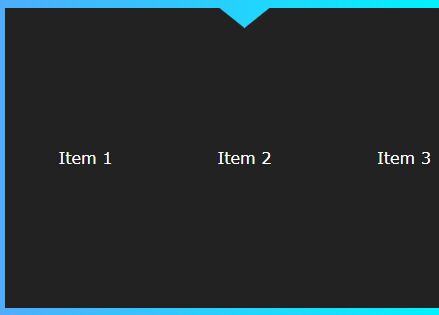

triangle-menu is a jQuery plugin that adds an SVG based triangle indicator to active menu items using the Clip Path Polygon plugin.


Documentation

triangle-menu Build Status Built with Grunt

This is a jQuery plugin that creates a dynamic menu with a triangle pointer based on clip-path.

Examples

Installation

Node

$ npm install triangle-menu --save

Then require it:

require('triangle-menu');

and use:

$myElement.triangleMenu();

Browser

Download triangle-menu.min.js (minified) or menu-triangle.js (dev) and add it to you HTML file:

<script src="jquery.min.js"></script> <script src="clip-path-polygon.min.js"></script> <script src="triangle-menu.min.js"></script>

Remember about dependencies (http://jquery.com/download and clip-path-polygon)!

Compilation

If you want to compile the whole package and run unit tests, type npm install and grunt.

Usage

Definition: triangleMenu(options) where options are not required.

You have to have a certain HTML structure to use it. All the items in the menu have to have .menu-item class.

Options

Option Type Default Description
triangleHeight number 20 Height of the clipped triangle in px
triangleWidth number 50 Width of the clipped triangle in px
menuItemSelector string .menu-item Selector of the submenu item
activate(event, index) function nothing The callback function that is called when the mouse hovers over a .menu-item element; index argument is the index of .menu-item element and it's numerated from 1

Example use:

You can find the working examples here.

<table class="triangle-menu">     <tbody>         <tr>             <td class="menu-item">1</td>             <td class="menu-item">2</td>             <td class="menu-item">3</td>             <td class="menu-item">4</td>         </tr>     </tbody> </table>

and in your javascript file:

$('.triangleMenu').triangleMenu();

you can add some css to see the effects:

.triangle-menu {   height: 200px;   width: 600px;   background: green;   text-align: center; }

###More examples

With Bootstrap2:

<div class="row-fluid triangle-menu">     <div class="row4 my-menu-item">1</div>     <div class="row4 my-menu-item">2</div>     <div class="row4 my-menu-item">3</div> </div>

Using options:

$('.triangle-menu').triangleMenu({   triangleWidth: 10,   triangleheight: 5,   menuItemSelector: '.my-menu-item',   activate: function(event, index) {     console.log("You hovered over ", index, " element");   } }); ```
